Saw sharpening

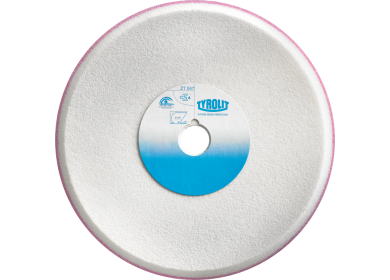

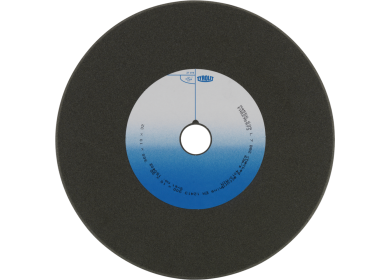

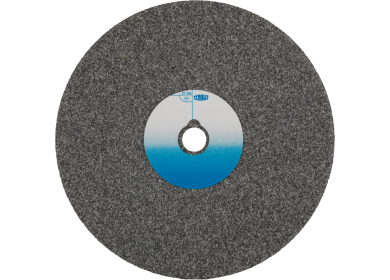

Grinding tools for automatic saw sharpening machines
For circular saws and stellite band and gang saws
Description
TYROLIT sells a wide assortment of tools tailored to various grinding machines and tooth pitches. They are suitable for dry and wet grinding for HSS, chrome vanadium and stellite saws.The products are available with different edge profiles; shape 1, 1F, 1C, in diameters ranging from 150 to 350 mm.
Advantages
- High profile retention
- For wet grinding
- Adapted to the surface requirement

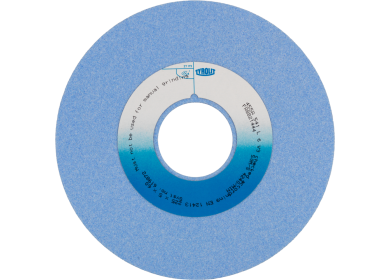

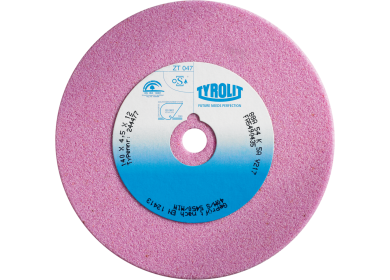

Grinding tool for chain saw sharpening machines
For steel
Description
With this wheel you receive a precise product that will significantly increase the lifetimes of your chain saws. The profile radius of this product corresponds to half the wheel width and is optimally tailored to the tooth base radius.This tool is suited to dry grinding with edge profile shape 1F and a 140 mm diameter.
Advantages
- High profile retention
- Precise finish
- Selection based on individual requirements

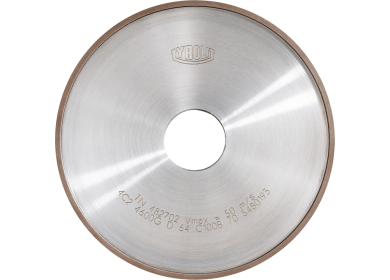

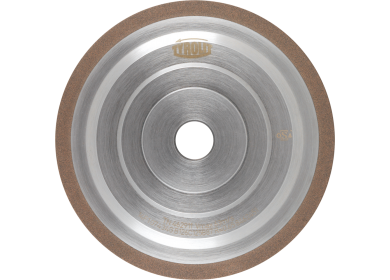

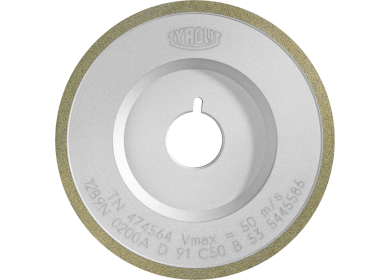

Resin-bonded diamond grinding wheels for chip surface grinding (tooth-face grinding)
For tungsten carbide
Description
TYROLIT offers a wide assortment of tools tailored to various grinding machines for narrow and wide tooth pitches due to their adapted diamond section thicknesses and core shapes. This enables you to achieve perfect surface geometries.This product is available for all standard sharpening machines in 100 - 200 mm diameters.
Advantages
- Long lifetime
- Optimum core shapes
- Best cutting quality

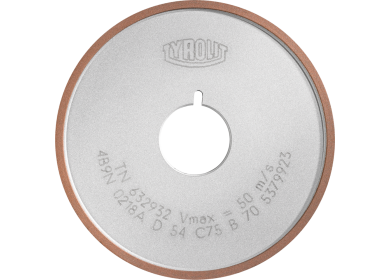

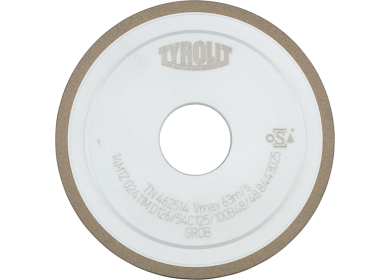

Resin-bonded diamond grinding wheels for clearance grinding (back grinding)
For tungsten carbide
Description
This resin-bonded diamond wheel is available as a cup wheel or peripheral wheel. It is also available as a single or D126/D46 double layer. Double layer wheels achieve an excellent level of cutting quality due to a combination of two grit sizes in a high concentration.This product is available for all standard sharpening machines in 100 - 125 mm diameters.
Advantages
- Long lifetime
- High economic efficiency
- Best cutting quality

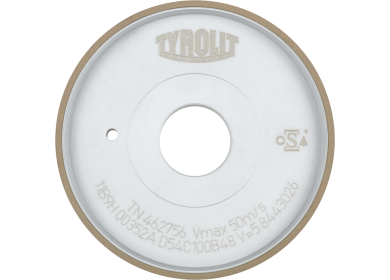

Resin-bonded diamond grinding wheels for flank machining
For tungsten carbide
Description
This TYROLIT product is suitable both for repair and production grinding and offers high stock removal rates on tungsten carbide. This is primarily achieved due to a reduced concentration and tailored bond system.The diamond wheels are available for all standard sharpening machines in 76 - 100 mm diameters. It is important to note that diameters of 76 - 80 mm should be used especially for narrow tooth pitches.
Advantages
- High stock removal rate
- Optimum grit size
- For narrow tooth pitches

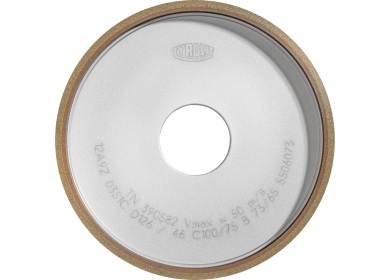

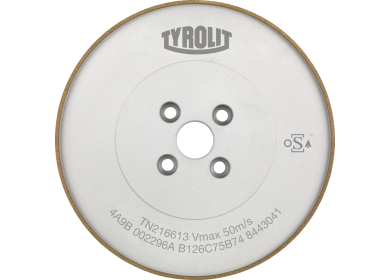

CBN resin tools for tooth profile grinding
For HSS
Description
This TYROLIT product is suitable both for repair and production grinding and offers high stock removal rates on HSS. The CBN tool for tooth profile grinding has been specially designed for wet grinding with emulsion and oil.The CBN tools are available for all standard sharpening machines in 150 - 200 mm diameters.
Advantages
- High chipping rate
- High profile retention
- For wet grinding

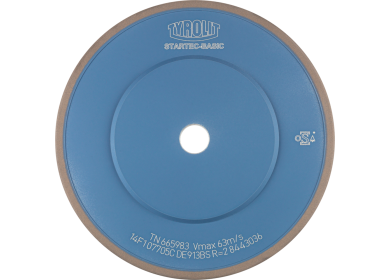

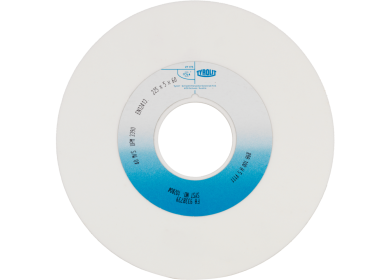

Vitrified-bonded and CBN resin-bonded profile grinding wheels
For tungsten carbide and HSS
Description
For profile grinding of HSS you can use aluminium oxide or CBN wheels. Tungsten carbide should however only be ground using diamond. For pre-grinding we recommend using grit size 54 in aluminium oxide and sintered aluminium oxide mixture.Grit size 100 should be used for finish grinding and fine profiles, or alternatively B151 in CBN. Finer grit sizes are usually used for tungsten carbide.
Advantages
- High stock removal rate
- High profile retention
- Broad assortment

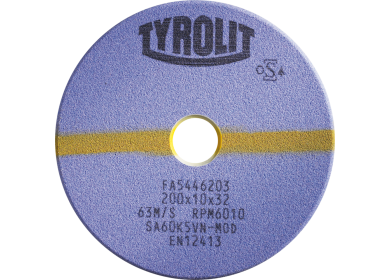

Resin tool for regrinding planer knives
For tungsten carbide and HSS
Description
These resin tools are cup wheels with special mounting holes for Weinig Rondamats. Planer knives can be reground using wet or dry grinding.To achieve the required cutting quality, grain B107 is used for HSS and grain D76 for tungsten carbide.
Advantages
- Cool grinding
- Reduced grinding pressure
- Special use
Elastic tool for effect grinding
For steel
Description
The TYROLIT elastic tool has been specially developed for effective grinding in production or repair. When soldering on tungsten carbide teeth, discolouration to the workpiece occurs; this can be removed quickly.Elastic wheels with silicon carbide are also used for cleaning and touching up used saw blades. Effect grinding is also frequently used on saw blades.
Advantages
- Reduced rework requirement
- Good dressability
- Universal use

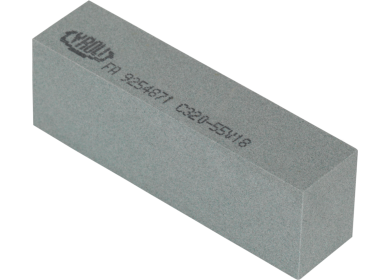

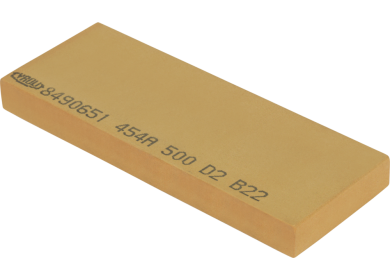

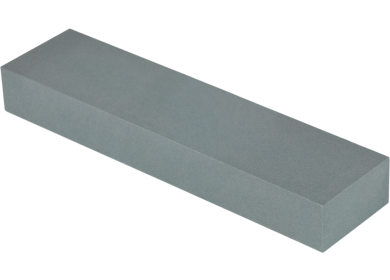

Vitrified-bonded and resin-bonded jointing stones
For tungsten carbide and HSS
Description
To achieve the highest planing quality, micro-size planer heads are levelled with jointing stones. Products from TYROLIT achieve optimum dressing effects.It is possible to level HSS and tungsten carbide planer knives with this product.
Advantages
- Cool grinding
- Good profiling
